Single Axis Robot ISA-MXM-I-200-20-1050-T2-M-AQ-SP SCON travel 1050mm IAI

Brand : IAI
Actuator model : ISA-MXM-I-200-20-1050-T2-M-AQ-SP

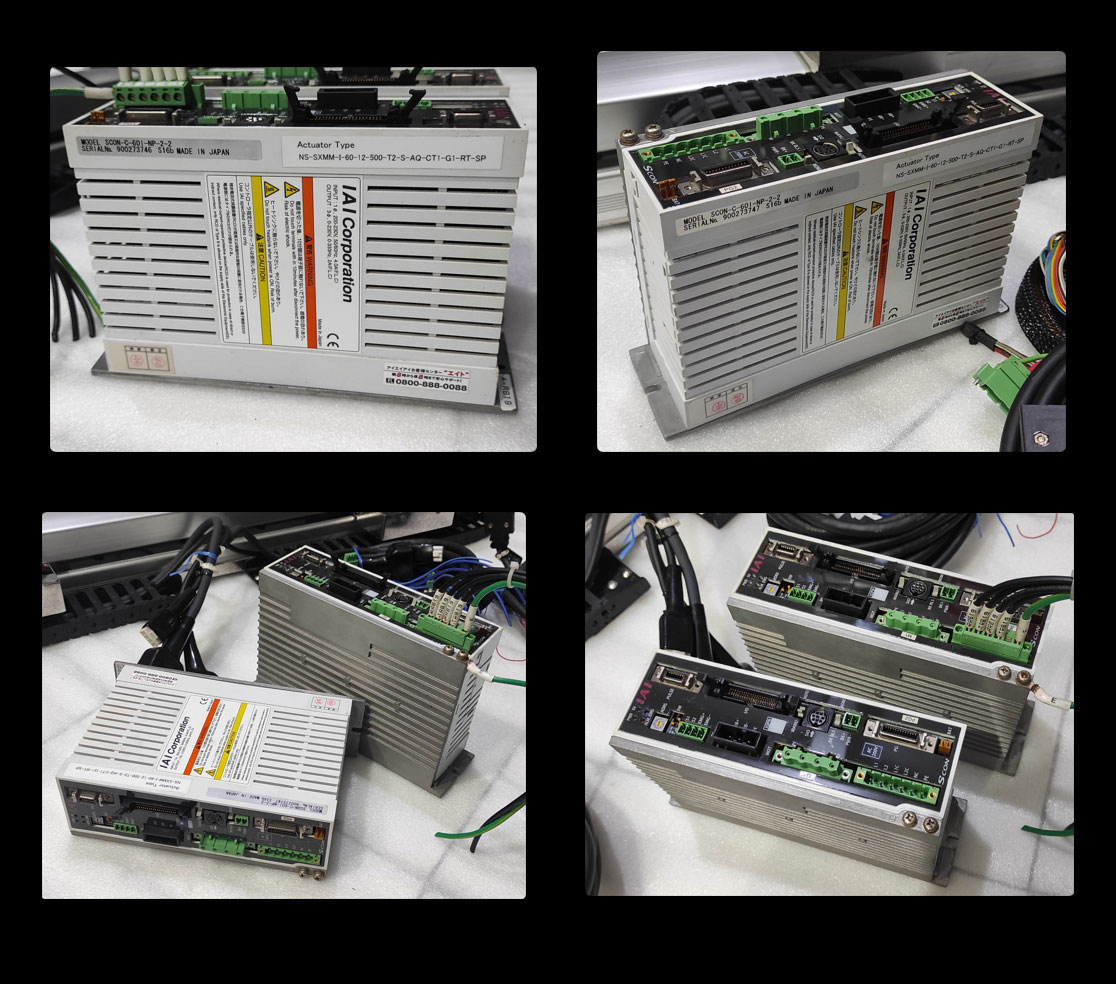

Controller model : SCON-C-200I-NP-2-2
Motor output : 200W
Lead : 20
Stroke : 1050
Encoder type : Incremental
Speed : 1~1000
Load capacity
Horizontal(kg) : 40 (rated acceleration), 12 (Max. acceleration)
Vertical(kg) : 9 (rated acceleration), 5 (Max. acceleration)
Rated thrust(N) : 169.5
Positioning repeatability (Note 4) : 0.02mm [0.01mm]
Drive system (Note 5) : Ball screw 16mm, rolled C10 [equivalent to rolled C5]
Lost motion (Note 6) : 0.05mm or less [0.02mm or less]
Guide : integrated with base
Allowable dynamic moment : Ma: 69.6Nm Mb: 99.0Nm Mc: 161.7Nm
Overhang load length : Ma direction: 600mm or less, Mb/Mc directions: 600mm or less
Base Material : Aluminum, with white alumite treatment

Weight (kg) : Approx. 19.1
Made in : Japan
Condition : Used, excellent
 and Ready to use
Available Unit : 2 set

Price : call/unit

  Payment Method :
Bank Transfer, Cash, PayPal

Ultrasonic Cleaner Generator MU-300M 25kHz MIRAE Ultrasonic

Brand : MIRAE ULTRASONIC
Model : MU-300M
Rated voltage : 220V
Rated Freq. : 50 Hz
Operating freq. : 25 KHz
Made in : KOREA
Condition : Used, tested, sold as is
Total Unit : 3 pcs
Price : CALL/UNIT

Payment Method :   Bank Transfer, Cash, PayPal

direct drive actuator outer rotor ABSODEX AX2012H CKD


Brand : CKD
Model: AX2012H
Applicable driver : AX9012H-K
Continuous Output Torque (N·m) : 4
Maximum Output Torque (N·m) : 12
Maximum Rotation Speed (rpm) : 100
Allowable Axial load (N) : 1000
Allowable Moment Load (N·m) : 40
Output Axis Inertia Moment(kg·m^2) : 0.00695
Allowable Load Inertia Moment(kg·m2) : 0.3
Output Axis Run-out (mm) : 0.03
Output Axis Side Run-out (mm) : 0.03
Output Axis Friction Torque(N·m) : 0.4
Resolver Revolution (P/rev) : 540672
Indexing Accuracy (sec) : ±15
Repeating Accuracy (sec) : ±5
Total weight(Kg) : Aprrox. 7
Made in : Japan
Condition : Used, untested, taken from working machine part. sold as is
Available unit : 1
Price : call/unit


  Payment Method :   Bank Transfer, Cash, PayPal

Index gear AC magnetic speed control motor set 3RK15RGN-AM 3GN15K RGIS032-004270S1FA MSP301N

Brand : Oriental Motor, CKD
Motor Model : 3RK15RGN-AM
Motor type : AC Magnetic brake speed control motor
Max. Output : 15W

Gearhead type : 3GN15K
Gear head reduction ratio : 1/15

Speed controller type : MSP301N
Power input voltage : Single phase 100 V 10%
Power input frequency : 50/60 Hz
Rotational speed setting method
It depends on one of the following.
- Setting by internal speed setting device Setting by
external speed setting device (accessory): PAVR - 20KY (20 k, 1/4 W)
- Setting by external DC voltage: DC 0 to 5 V
function : Speed control, contactless instantaneous stop, contactless forward / reverse rotation, contactless rotation speed switching, slow start slow down
Control power supply : DC 24 V 10% or DC 5 V 10% 0.1 A or more
input signal : Photocoupler input External contact capacity: 24 VDC 40 mA
Signal input: CW / CCW / FREE / SPEED SET

Index gear model : RGIS032-004270S1FA
Shaft interval : 32 mm
Index number : 4 indexes
Total index angle : 270 deg.
Cam curve : MS curve(standard)
Cam helix direction/dwell number : left helix/1 dwell
Output shaft type : Flange
Housing material : Al Housing

Total weight(Kg) : Aprrox. 5.5
Made in : Japan
Condition : Used, Great & Ready to use
Total set : 1
Price : call/unit


  Payment Method :   Bank Transfer, Cash, PayPal

Flameproof Light Curtain Sensor Area Emitter Receiver BSF4-AH8 PANASONIC

Brand : PANASONIC
Model. : BSF4-AH80
Type: 20mm(0.787in.) beam pitch
Operating Range: 0.3 to 6 m(0.984 to 19.685ft.)
Number of beam channels: 80
Protective height: 1,595mm(62.795in)
Emitting elements: Infrared LED
Peak emission wavelength:870mm(0.034mil)

Material
Flameproof enclosure - aluminium
Lid: Aluminum die-cast
Clear window:Glass
Window frame: Steel plate
Window packing: Chloroprene
Sensor mopunting bracket: Steel plate(black chromate)

Condition : NEW, old stock, tested still fine.
Unit weight(Kg) : 55
Total set : 1

Price : Call/Unit

  Payment Method :   Bank Transfer, Cash, PayPal

PH meter HM-20S TOA DKK


Brand : TOA DKK
Model : HM-20S
Made in : Japan
Condition : Used, really nice, clean, old stock still function well. sold as is
Total Unit : 1 unit
Price : call/unit


  Payment Method :

Bank Transfer, Cash, PayPal
